Pop 32 – Heavy Duty Gazebo


“So versatile!” – Use for home, leisure or light business. Our popular 32mm box frame gazebo is used by many individuals and companies in multiple applications. Perfect for light to medium use, the MCD Pop 32 is the ideal combination of quality, value for money, and simplicity.

The Pop32 Gazebo comes with the Frame, Canopy, Pegs, and a Wheelie Bag. You can add side walls to your order right here!

Simply choose your gazebo frame size and colour below!
Inquire now
SKU: N/A Category:

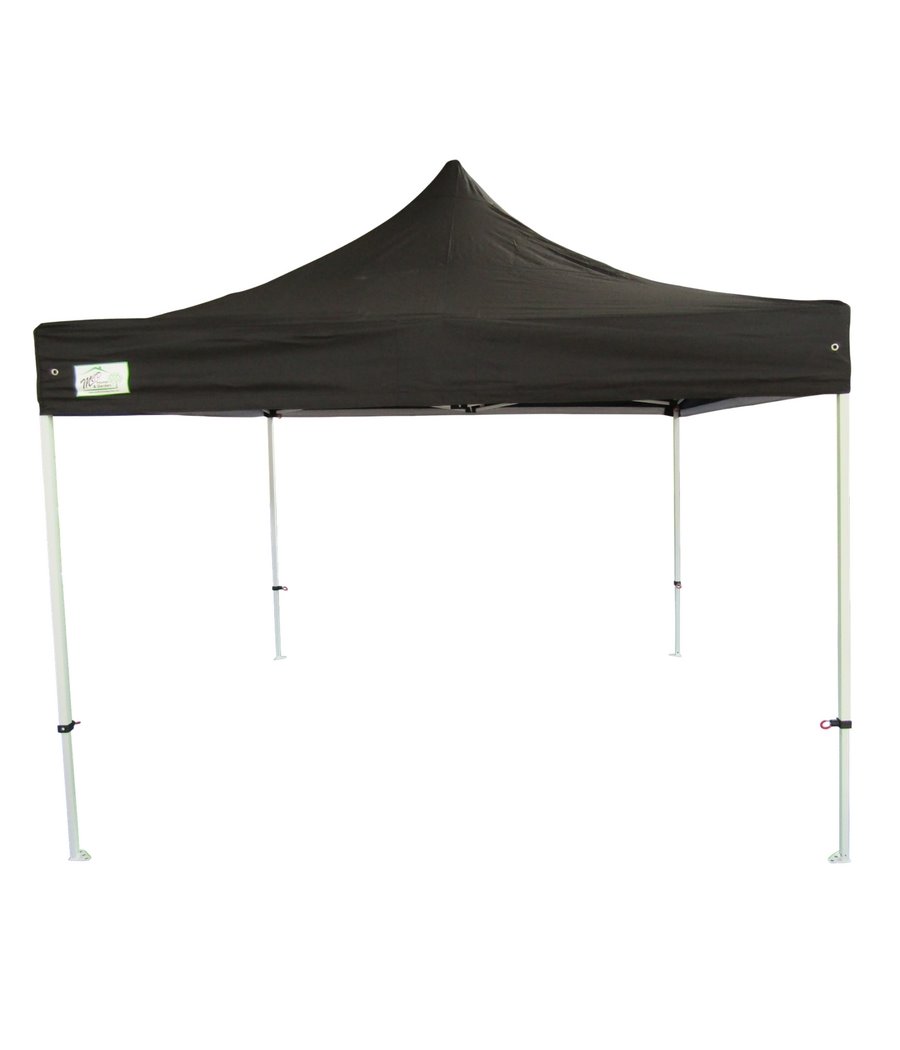

The Pop 32 Heavy Duty Gazebo

Gazebo Pop 32 Main Features:
Robust & Durable
High Quality Engineered Materials
Highly Versatile
Water Resistant to a High Standard
Extended Warranty
Fire Rated to BS 7837:1996
Erected in Minutes
3 Sizes 3x3m | 3×4.5m | 3x6m
10 Colours to choose from
HD Gazebo Printing Available

Gazebo Pop 32 Frame Specifications:
32mm x 32mm Reinforced Coated Steel Frame (39mm cross diameter)
Up to 1.2mm gauge steel
Heavy Duty Box Section Profile

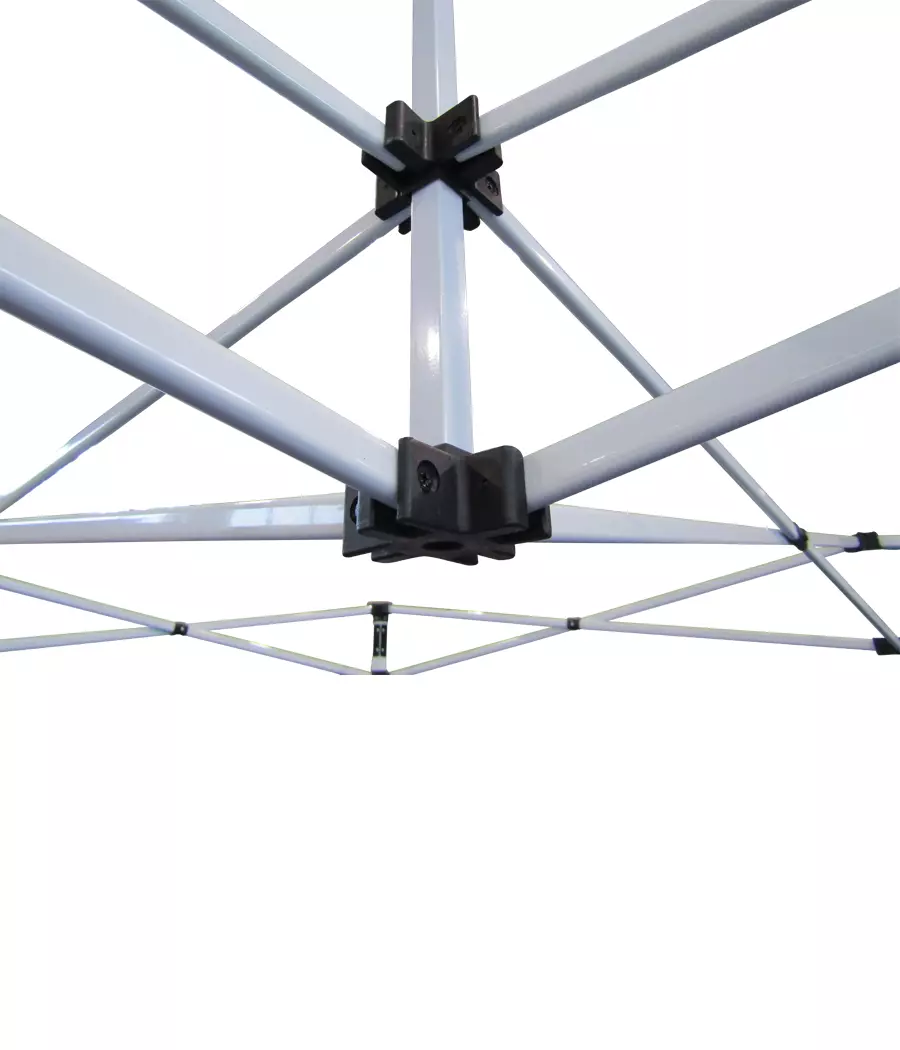

Carbon Fibre Nylon Joints
Welded Steel Feet
5 Height Adjustment Legs

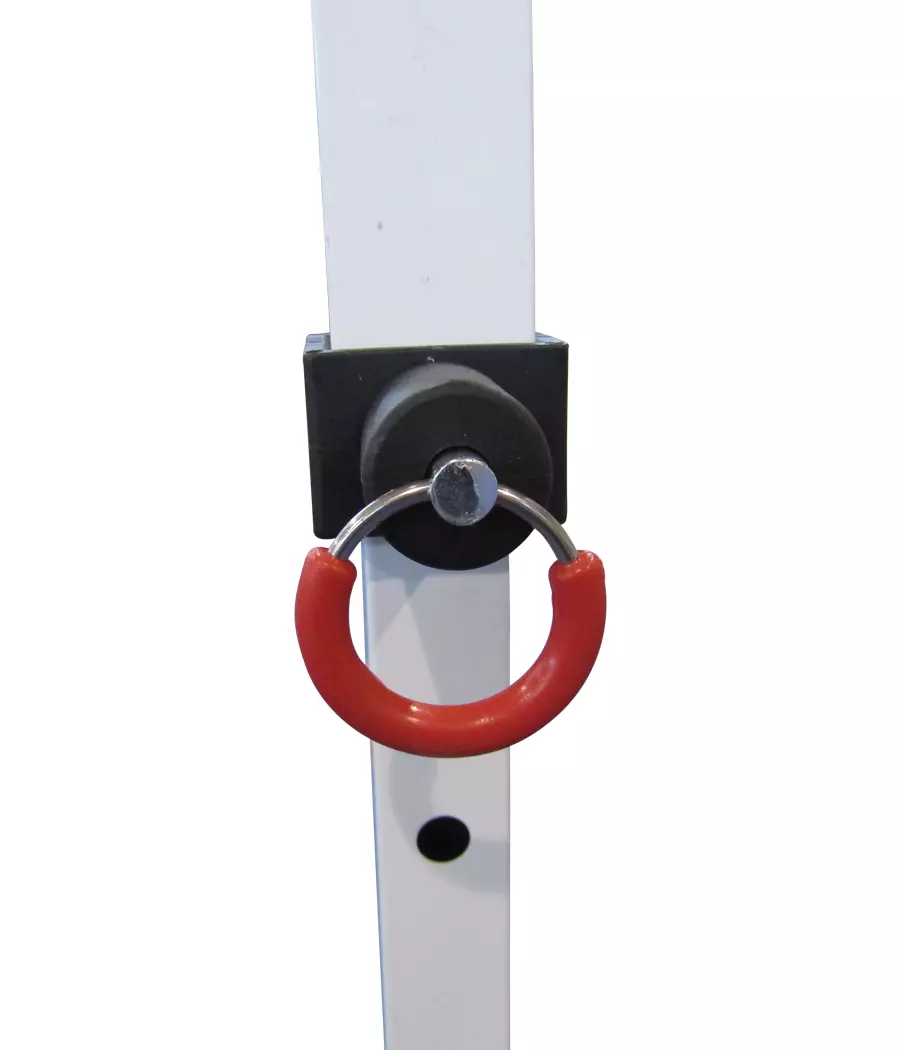

Quick Release Pin-Pull Bracket
Supplied with guyropes and pegs
FREE heavy-duty wheeled storage bag
Pro Quality Roof Canopy:
PVC Coated Polyester Roof Cover (600D)
Water Resistant to a High Standard
Fire Rated to BS 7837:1996
Hot Taped Seams
Reinforced material on all corners/stress points

Pro Quality Sidewalls: Available in our accessories section

PVC Coated Polyester Roof Cover (600D)
Water Resistant to a High Standard
Fire Rated to BS 7837:1996
Heavy Duty Velcro bands to attach to Canopy
Heavy Duty Corner Zips
x2 Clear PVC Window Panels along with Privacy Window Blinds
x1 Twin Zipped Door Panel
x1 Solid Blank Panel
Specifically designed PVC Weather Flap Skirting all round

Available Colours:
White – Black – Red – Sky Blue – Forest Green – Yellow – Orange – Light Grey – Purple – Fuschia Rose (Pink)

Gazebo sizes available:
3m x 3m – 3m x 4.5m – 3m x 6m

Spare parts:
You’ll be pleased to hear that in the unlikely event you damage any part of your new MCD gazebo we have all spare parts in stock. All parts are easy to install and quickly get you up and running again. Not all companies offer this service.

Optional Equipment:
Weight Bags
Cast Iron Weighted Feet
Ratchet Tie Down Kits
Gutter Kits
Gazebo Connectors
Half Walls
Strengthening Bars
Pop Up Aluminium Trade Tables

Packaging Dimensions: 3m x 3m
Frame – 163cm x 23cm x 23cm – 25.3kg
Canopy – 53cm x 37cm x 8cm – 6.2kg

Total Weight 31.5kg

Packaging Dimensions: 3m x 4.5m
Frame – 162cm x 30cm x 23cm – 31kg
Canopy – 53cm x 37cm x 12cm – 7.9kg

Total Weight 38.9kg

Packaging Dimensions: 3m x 6m

Frame – 167cm x 42cm x 23cm – 40kg
Canopy – 53cm x 37cm x 14cm – 10kg

Total Weight 50kg

Click Here to speak to a member of our team about customising.

How to set up a Pop Up Gazebo

Step 1 –

Remove the gazebo from the storage bag. Stand the frame up on it’s legs. Ensure this is the centre of the area you want to cover. With two people standing either side of the frame, slowly open the gazebo by lifting it off the ground slightly. This will ensure there is no damage to the frame’s feet. Open it about half way and stop. Unfold and loosely place the canopy into position on top of the frame.

Step 2 –

With each person holding the middle truss bar on opposite sides. Open the frame until it is about 95% open. Remeber to be careful, don’t pinch your fingers.

For our 3m x 6m option, each person should grab the middle leg on each side.

Step 3 –

Engage the auto slider at each corner. This is done by pushing up with one hand while holding down on top of the leg with the other hand. You should hear a click from the ‘O’ ring, engaging with the hole. Repeat this on all other legs.

Step 4 –

At each corner, pull the hem of the canopy down to the bar. Secure the Velcro so the top is tight, with no sagging. The canopy can be further secured to the frame using the snap clip straps.

Step 5 –

Lift the two adjacent outer legs up together. Pull the inner leg until it clicks into place. Repeat this on other legs. Raise the gazebo to the desired height using the quick release pins.
