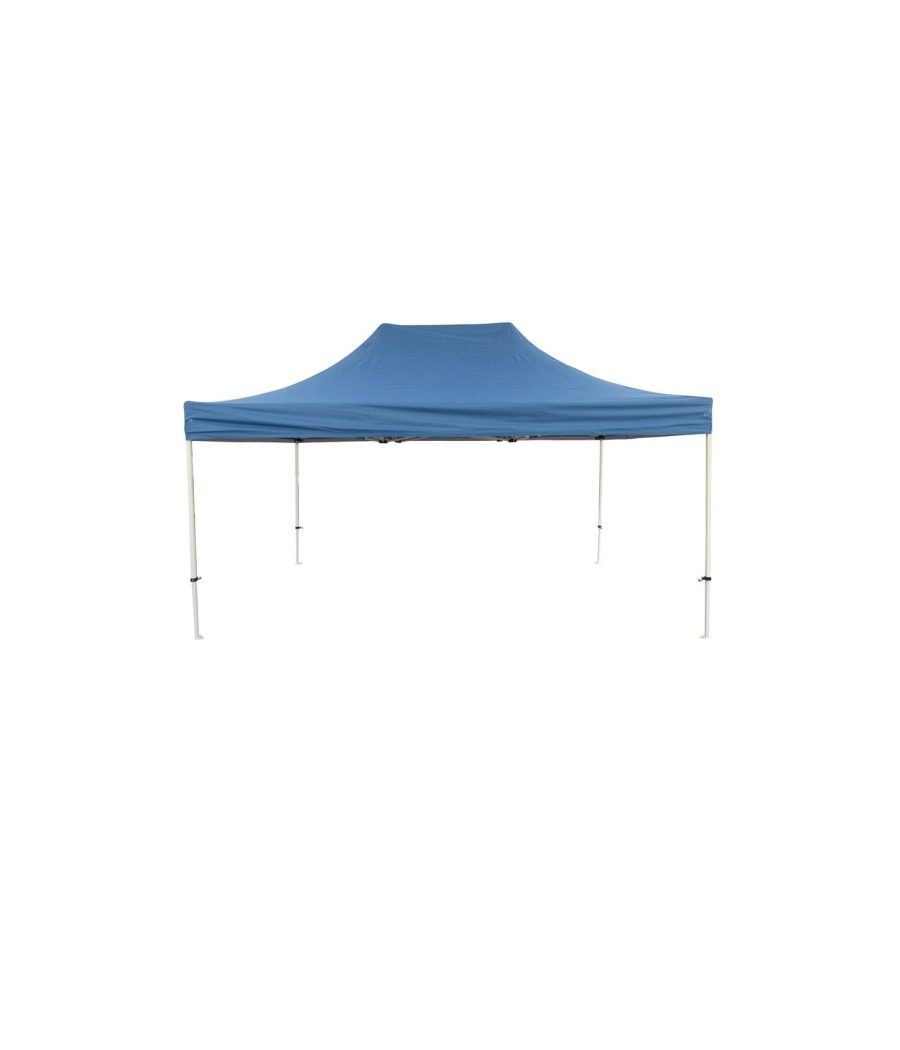

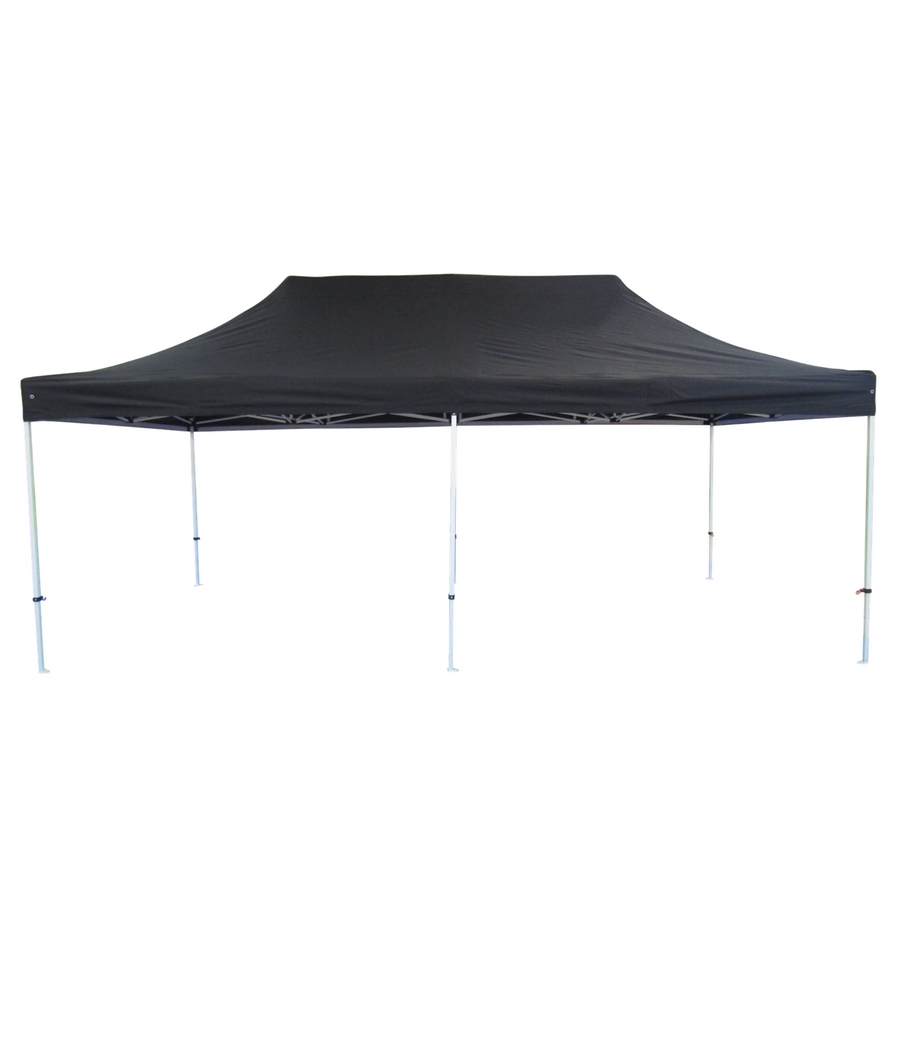

Pop 50 – Industrial Gazebo

£489.99£749.99

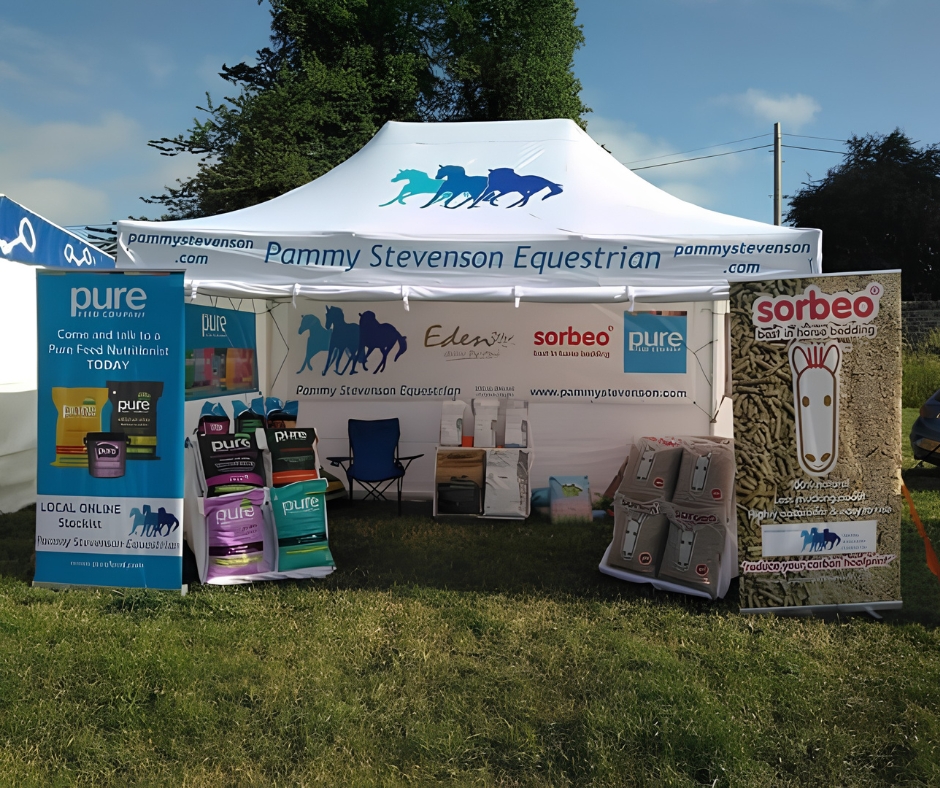

“The Beast” – Our top class 50mm aluminium hexagonal gazebo is designed for a range of uses. The highly engineered reinforced frame is ideal for businesses to use as trade stands, catering shelters, smart repairs even sport team sideline cover. The MCD Pop 50 is the best quality pop-up shade available

The Pop50 Gazebo comes with the Frame, Canopy, Pegs and an easy to carry Wheelie Bag. You can add side walls to your order right here!

Click below to choose your colour and size!
Inquire now
SKU: N/A Category:

Description

Gazebo Pop 50 Main Features:
Robust & Durable
High Quality Engineered Materials
Highly Versatile
Water Resistant to a High Standard
Extended Warranty
Fire Rated to BS 7837:1996
Erected in Minutes

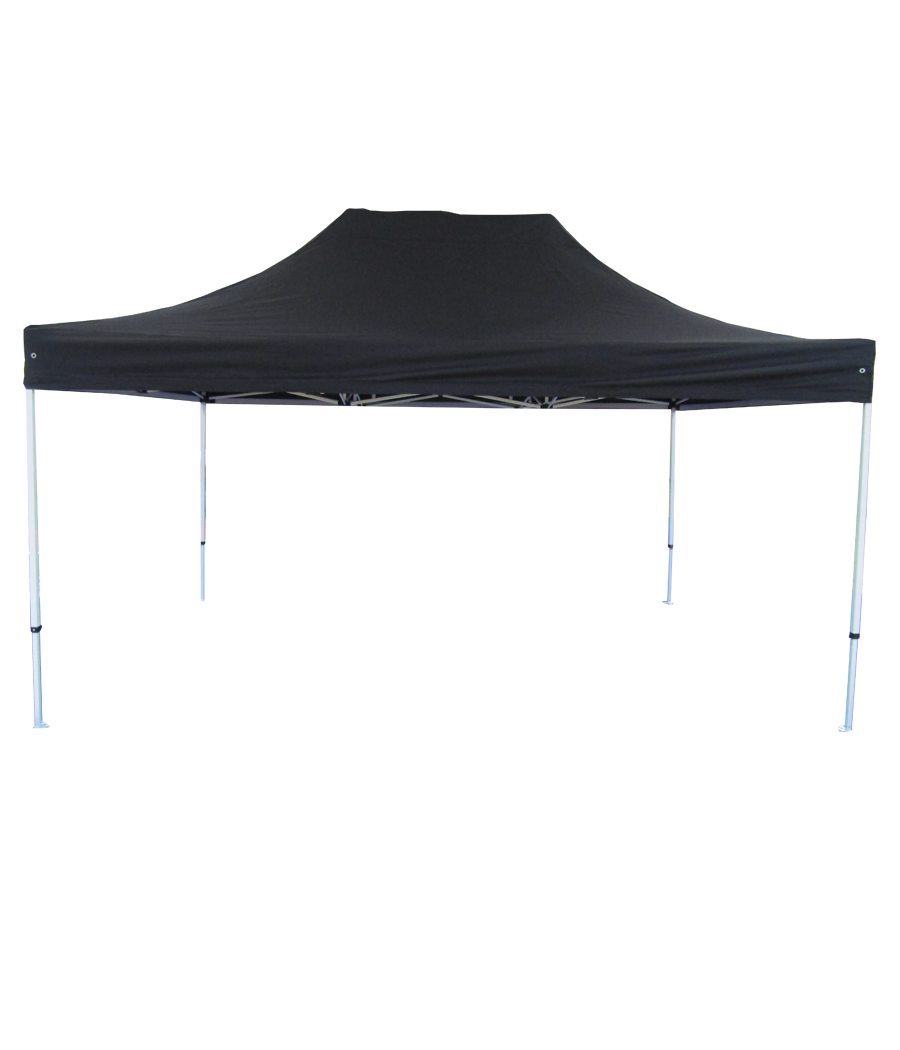

3 Sizes 3x3m | 3×4.5m | 3x6m
10 Colours to choose from
HD Gazebo Printing Available

Gazebo Pop 50 Frame Specifications:

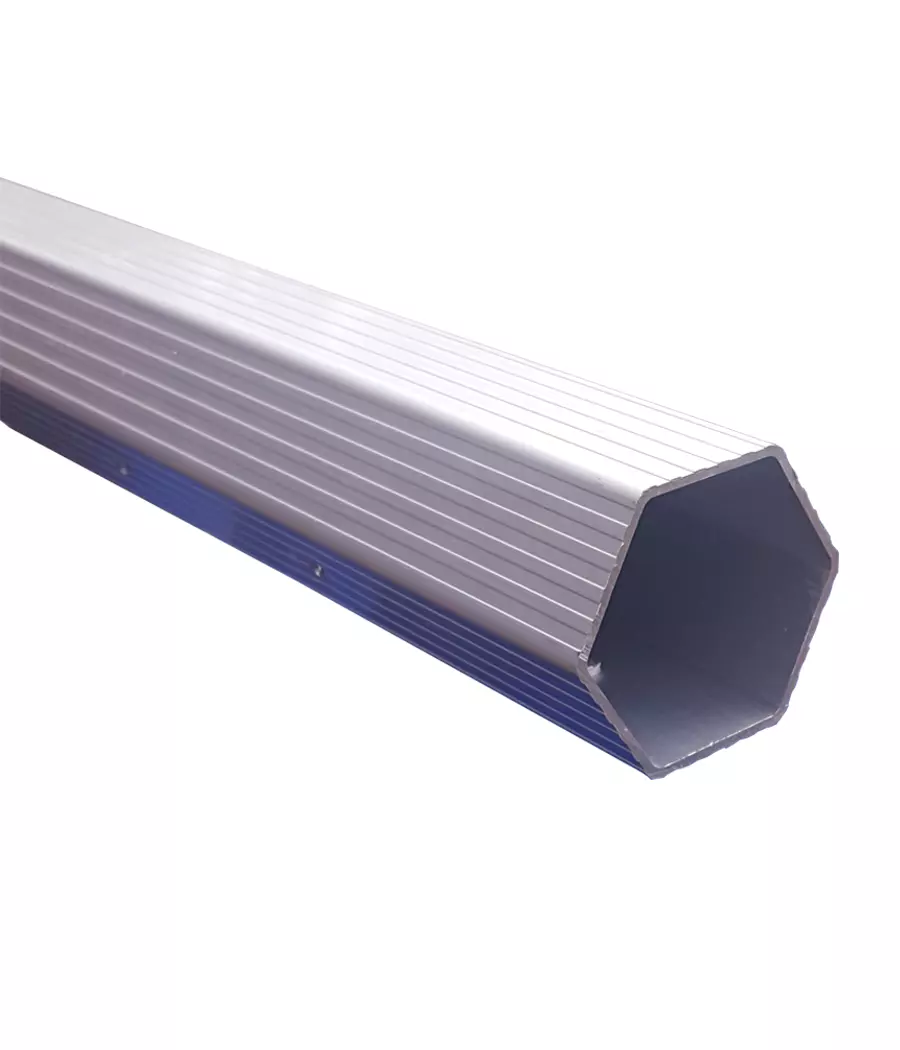

50mm x 50mm Hexagonal Aluminium Frame (58mm cross diameter)
Up to 2mm gauge aluminium
Commercial Reinforced Framework

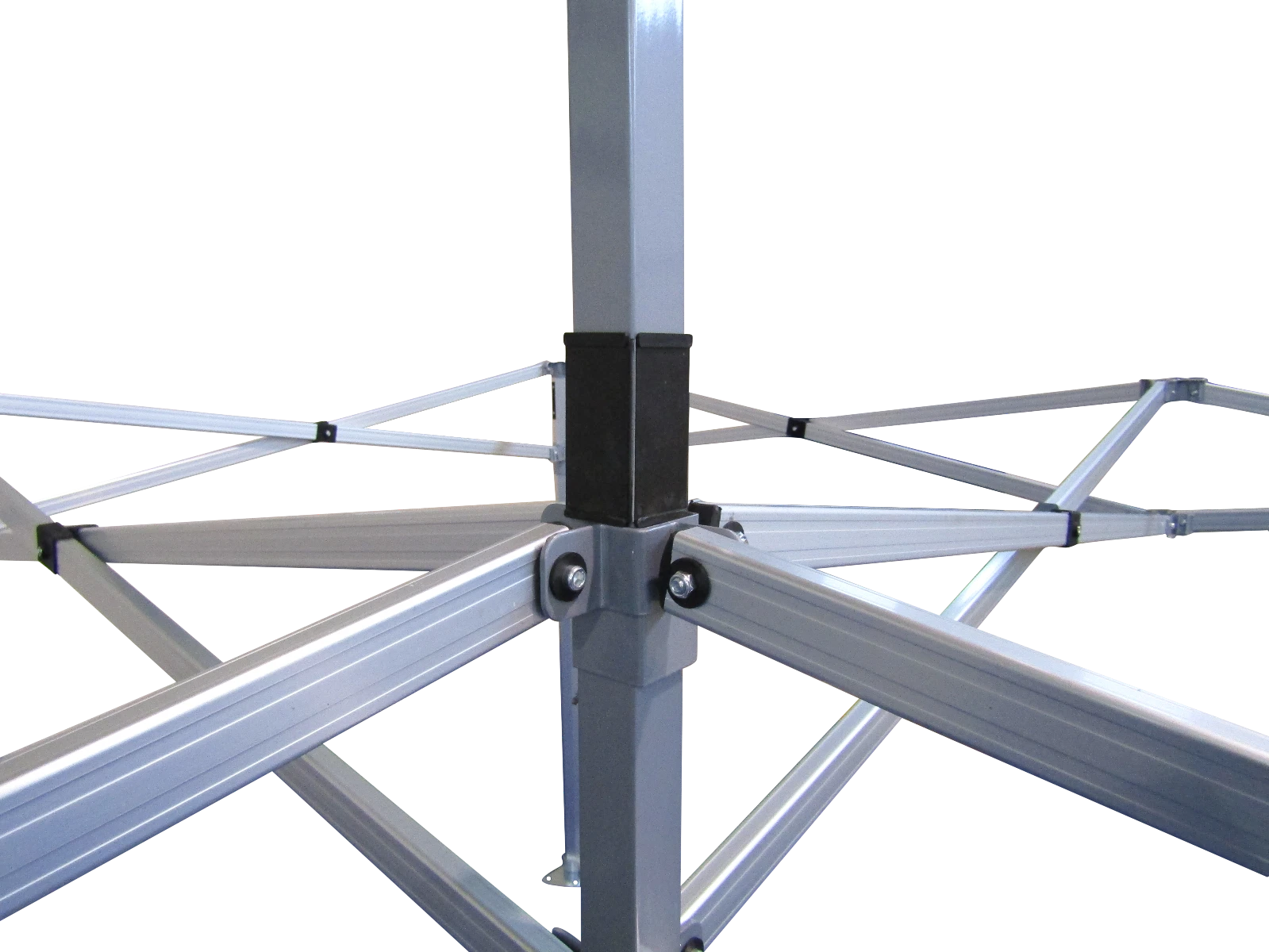

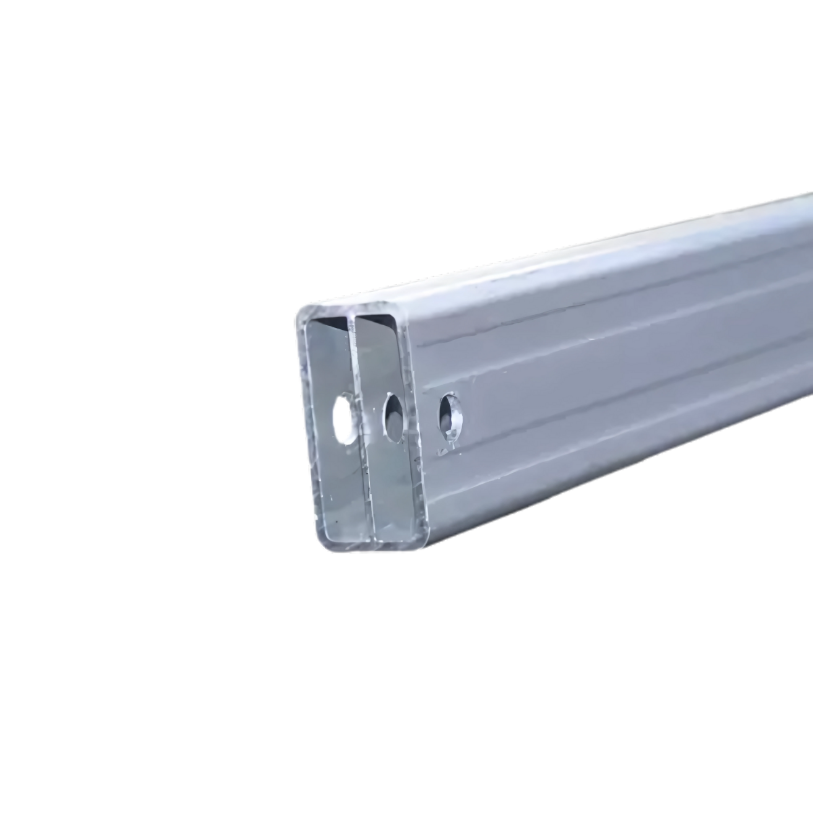

Strengthened Trusses with Internal Bracing

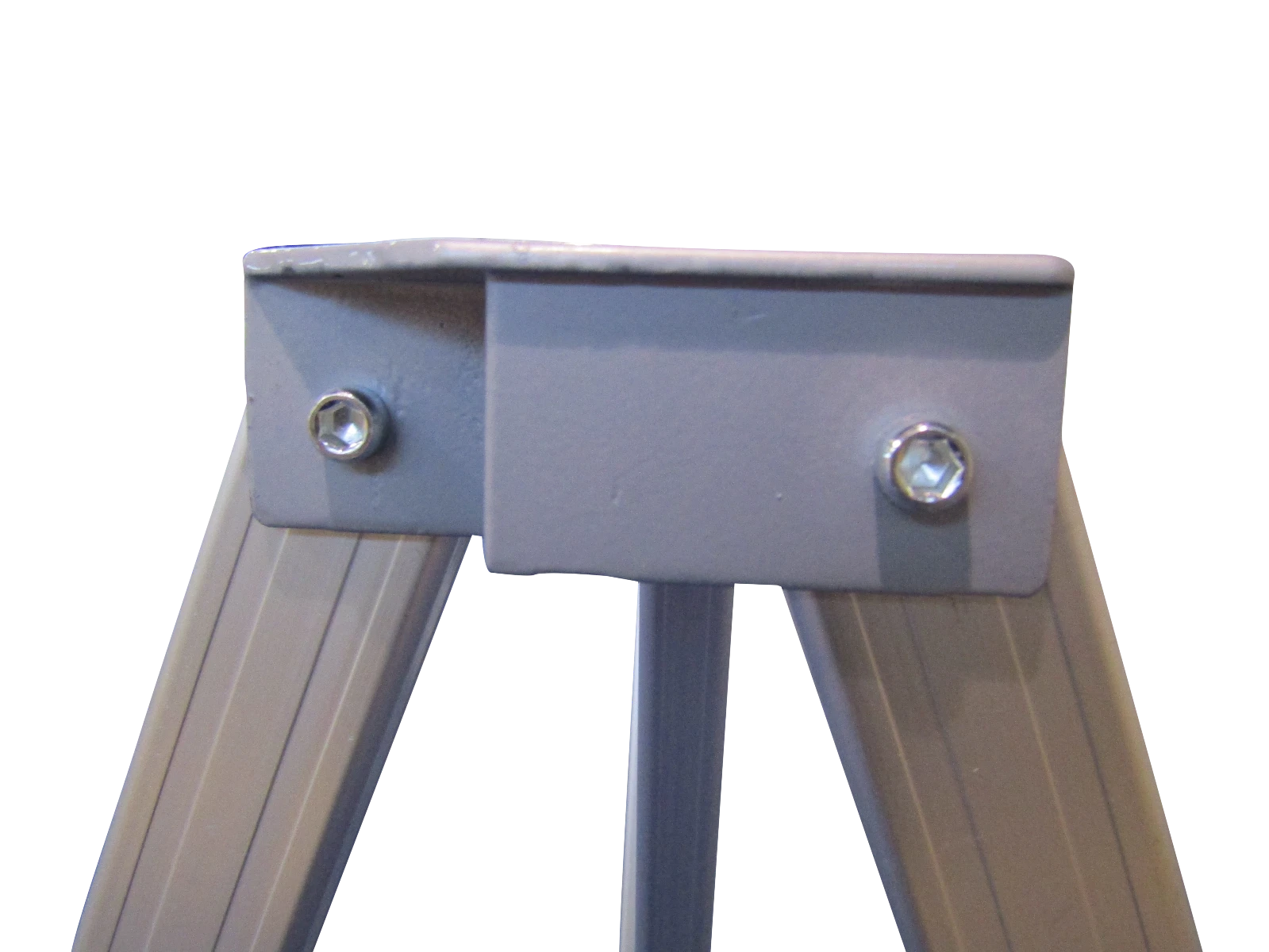

High Density Steel Joints

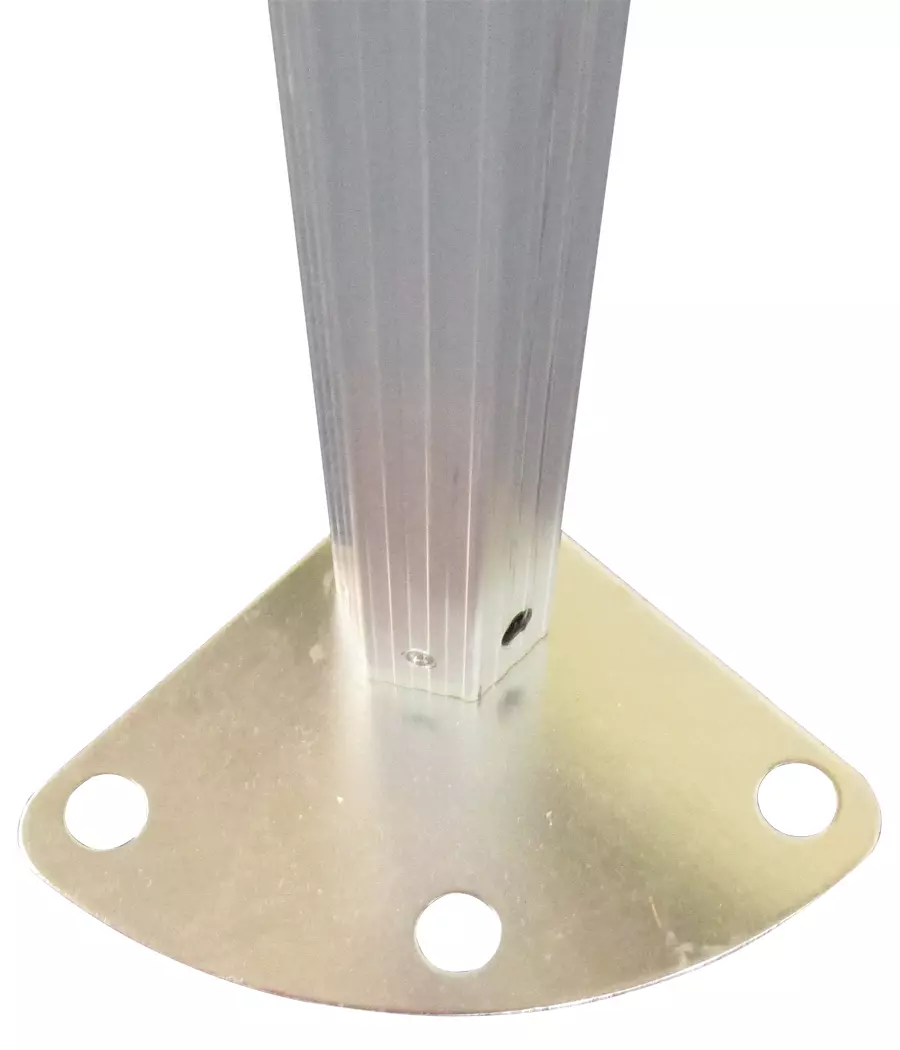

Galvanised Steel Footplates
5 Height Adjustment Legs

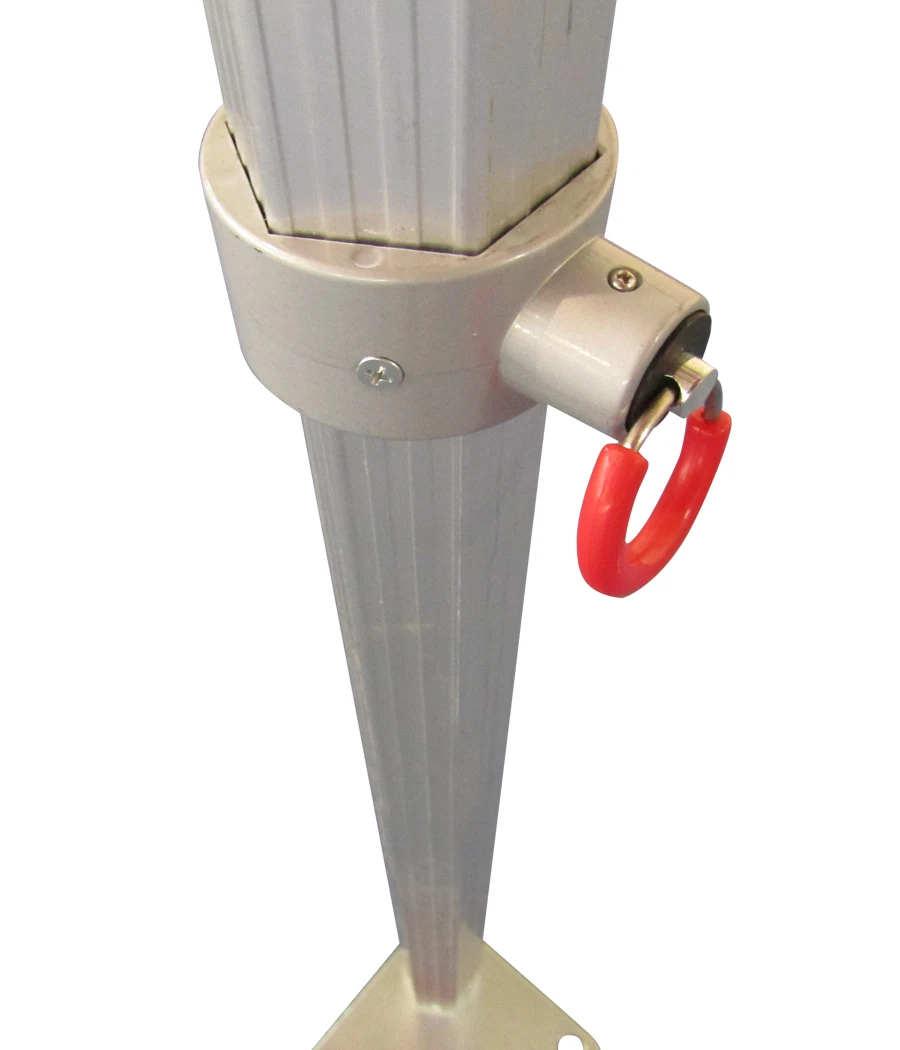

Quick Release Pin-Pull Bracket
Supplied with guyropes and pegs
FREE heavy-duty wheeled storage bag
Pro Quality Roof Canopy:
PVC Coated Polyester Roof Cover (600D)
Water Resistant to a High Standard
Fire Rated to BS 7837:1996
Hot Taped Seams
Reinforced material on all corners/stress points

Pro Quality Sidewalls: Available in our accessories section

PVC Coated Polyester Roof Cover (600D)
Water Resistant to a High Standard
Fire Rated to BS 7837:1996
Heavy Duty Velcro bands to attach to Canopy
Heavy Duty Corner Zips
x2 Clear PVC Window Panels along with Privacy Window Blinds
x1 Twin Zipped Door Panel
x1 Solid Blank Panel
Specifically designed PVC Weather Flap Skirting all round

Available Colours:
White – Black – Red – Sky Blue – Forest Green – Yellow – Orange – Light Grey – Purple – Fuschia Rose (Pink)

Gazebo sizes available:
3m x 3m – 3m x 4.5m – 3m x 6m

Spare parts:
You’ll be pleased to hear that in the unlikely event you damage any part of your new MCD gazebo we have all spare parts in stock. All parts are easy to install and quickly get you up and running again. Not all companies offer this service.

Optional Equipment:
Weight Bags
Cast Iron Weighted Feet
Ratchet Tie Down Kits
Gutter Kits
Gazebo Connectors
Half Walls
Strengthening Bars
Pop Up Aluminium Trade Tables

Packaging Dimensions: 3m x 3m

Frame – 160cm x 34cm x 34cm – 39kg
Canopy – 53cm x 37cm x 8cm – 6.2kg

Total Weight 58.7kg

Packaging Dimensions: 3m x 4.5m

Frame – 165cm x 44cm x 34cm – 50kg
Canopy – 53cm x 37cm x 12cm – 7.9kg

Total Weight 57.9kg

Packaging Dimensions: 3m x 6m

Frame – 165cm x 58cm x 34cm – 67kg
Canopy – 53cm x 37cm x 14cm – 10kg

Total Weight 94.5kg

Manufacturers Warranty Upgrade:
We are so confident of durability of our 50mm frame that we have extended the warranty on the frame to 5 years. This is unrivalled and gives you peace of mind. Subject to terms and conditions.

Click Here to speak to a member of our team about customising.

How to set up a Pop Up Gazebo

Step 1 –

Remove the gazebo from the storage bag. Stand the frame up on it’s legs. Ensure this is the centre of the area you want to cover. With two people standing either side of the frame, slowly open the gazebo by lifting it off the ground slightly. This will ensure there is no damage to the frame’s feet. Open it about half way and stop. Unfold and loosely place the canopy into position on top of the frame.

Step 2 –

With each person holding the middle truss bar on opposite sides. Open the frame until it is about 95% open. Remeber to be careful, don’t pinch your fingers.

For our 3m x 6m option, each person should grab the middle leg on each side.

Step 3 –

Engage the auto slider at each corner. This is done by pushing up with one hand while holding down on top of the leg with the other hand. You should hear a click from the ‘O’ ring, engaging with the hole. Repeat this on all other legs.

Step 4 –

At each corner, pull the hem of the canopy down to the bar. Secure the Velcro so the top is tight, with no sagging. The canopy can be further secured to the frame using the snap clip straps.

Step 5 –

Lift the two adjacent outer legs up together. Pull the inner leg until it clicks into place. Repeat this on other legs. Raise the gazebo to the desired height using the quick release pins.
